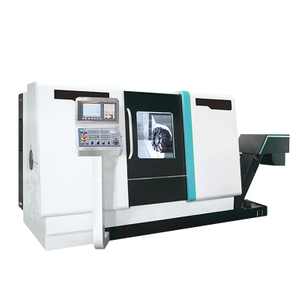

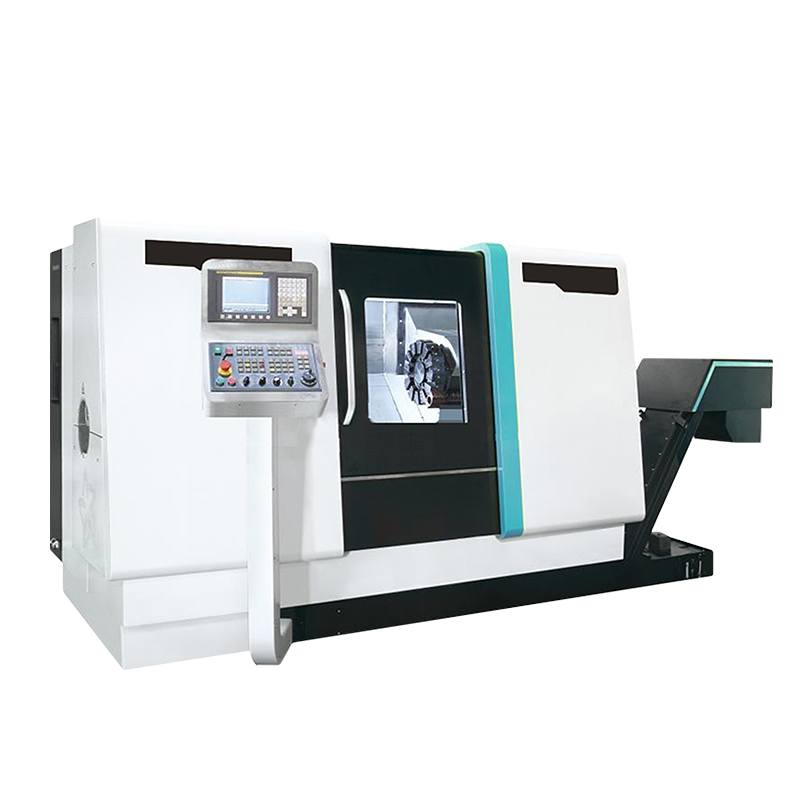

Performance Features:
CNC slope machining is an advanced metal cutting processing technology. By integrating various machining functions such as turning, milling, drilling, and tapping on a machine tool, it can achieve efficient and high-precision machining of complex parts.
Technical parameters:
| project | unit | GL-560 |
| Processing range | Slewing diameter | mm | 280 |
| Standard rotary diameter (axis) | mm | / |
| Slewing length | mm | 400 |
| Maximum slewing diameter of bed | mm | 560 |
| journey | Maximum slewing diameter on the tray | mm | 350 |
| X-axis stroke | mm | 200 |
| Spindle | Z-axis stroke | mm | 500 |
| Spindle speed | rpm | 50-4500 |
| Spindle output torque | Nm | 235 |
| Spindle through hole | mm | 65 |
| Spindle end form/code | . | A2-6 |
| Feed speed | The maximum diameter of the spindle through hole that can pass through the rod material | mm | 50 |
| Fast X-axis displacement | m/min | 20(rolling guide) |
| Motor | Z-axis fast displacement | m/min | 20 (rolling guide) |
| Spindle servo motor rated power | Kw | 11 |
| Spindle servo motor rated torque | Nm | 235 |
| Dual-axis servo motor model |
| X: standard, Z: standard |
| Ball screw | Dual-axis servo motor torque rated | Nm | X:10, Z:10 |
| Line rail | Ball screw diameter/pitch | mm | X:32/12, Z:32/12 |
| Line rail width/number of lines/number of sliders | mm | X/Z:35/2/4, tailstock: 35/2/4 |
| Tail seat | Tailstock movement form | / |
| Tail seat stroke | mm | 450 |
| Tail seat sleeve stroke | mm | 100 |
| Tail seat sleeve cone hole | Mohs | 5# |
| Tail seat sleeve diameter | mm | / |
| Knife Tower | Number of tool positions (standard) | pcs | 8 |
| External round knife | mm | 25×25 |
| Boring bar diameter | mm | 40/32/25/20 |
| The knife plate is available/not select the knife nearby |
| Can |
| Machine tool weight (net weight) | Kg | 3600 |
| Electricity demand | Kw | 14 |
| Load-bearing capacity | 盘 | Kg | 200 |
| 轴 | Kg | 500 |
| size | Length x width x height | mm | 2300×1700×1930 |
