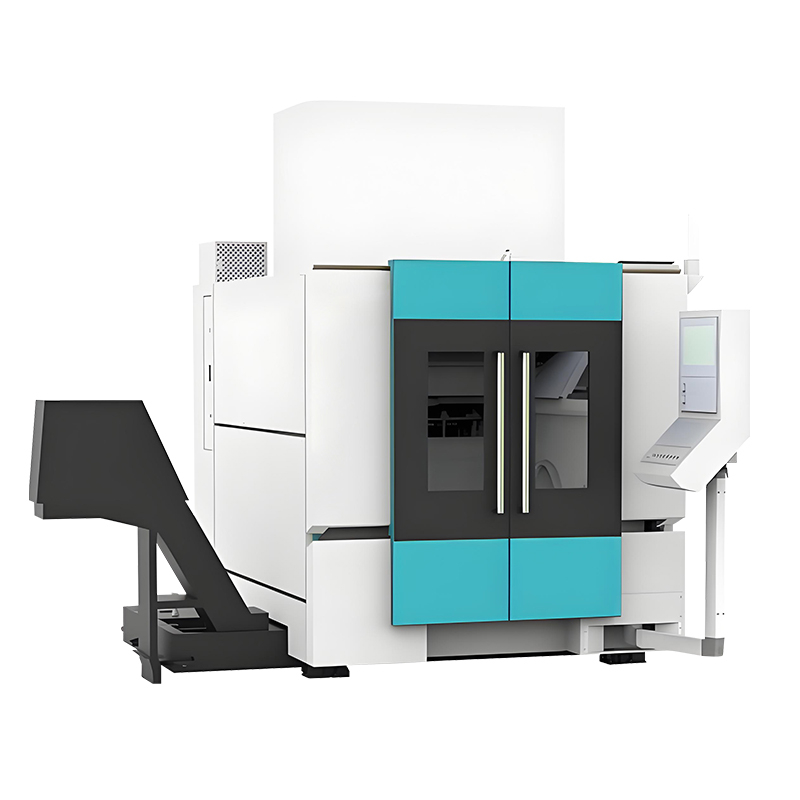

UT650
INDEX
| SKU: | |
|---|---|
| Availability: | |
| PDF Export | |
Features:
1. Five-axis machining center, since the X, Y and Z axes all use high-speed moving linear heavy-load roller-type linear guides to ensure the cutting rigidity during the machining process. Machine tools have low vibrations when feeding at high speed and no crawling when feeding at low speed. They are widely used in mechanical manufacturing, mold manufacturing and other industries. After clamping, the workpiece can be automatically and continuously processed in various processes such as milling, drilling, boring, reaming, counters, and tapping, which is suitable for large-scale production.
2. The equipment includes base, column, bed saddle, head, air conditioning cradle rotary table, hydraulic system, lubrication system, cooling and filtration system, chip removal device, automatic tool magazine, operating panel and electronic control system and other components.
3. Equipped with a high-performance broad-number 25i (RTcP) CNC system to ensure the stability of machine tool control and ensure the CNC machining functions and auxiliary functions required by users.
4. Quality control: production process standardization and details specialization. From casting processing to the assembly of the entire machine, strict and professional standardized processes are followed. Every step of assembly, every scratch, and even the locking of each screw have been strictly inspected.
Technical parameters:
| project | unit | UT650 | |
| Processing range | X-axis stroke | mm | 700 |
| Y-axis stroke | mm | 850 | |
| Z-axis stroke | mm | 550 | |
| Distance from the nose end of the spindle to the work surface | mm | 100~650 | |
| (level) | |||
| Workbench | Workbench area | mm | 500×500 |
| Maximum slewing diameter | mm | 650 | |
| Maximum workbench load | kg | 300 | |
| Feed | Fast movement speed of X/Y/Z axis | m/min | 30/30/30 |
| Spindle | Spindle type (standard) | Direct drive mechanical spindle | |
| Spindle taper | BBT40 | ||
| Maximum running speed | r/min | 12000 | |
| Power (rated/maximum) | KW | 7.5 | |
| Torque (rated/maximum) | Nm | / | |
| Accuracy | X/Y/Z axis positioning accuracy (JIS standard) | mm | ±0.005/300 |
| X/Y/Z axis repeatability accuracy (JIS standard) | mm | 0.003 | |
| Cradle turntable | A/C axis rotation range | o | A:±110/C:360 |
| A/C axis rated torque | rpm | 450/325 | |
| A-axis rated/maximum speed | Nm | ±10 | |
| C-axis rated/maximum speed | Nm | 5 | |
| A/C axis rated torque | r/min | 100/200 | |
| other | T-slot | mm | 8-14mm circuit ferential uniform distribution |
| Distance from the center of the spindle to the column | mm | 461.5 | |
| Three-axis servo motor torque (X/Y/Z axis) | Nm | 15/15/22 | |
| Cutting feed speed | mm/min | 1-10000 | |
| Machine tool size (length x width x height) | mm | 2200×2100×2400 |
