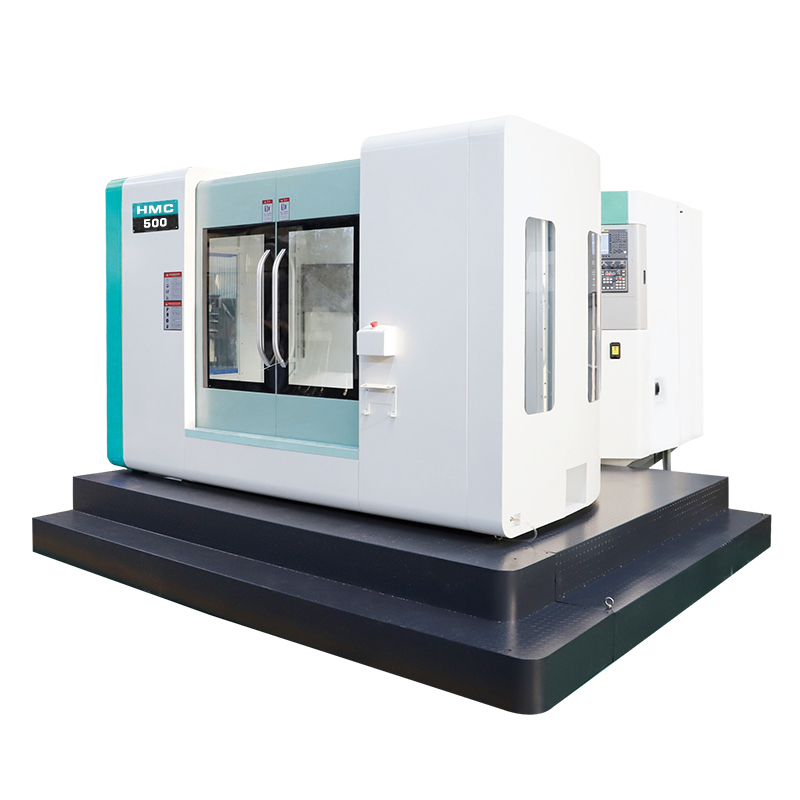

HMC-500 Horizontal Machining Center

The spindle axis is parallel to the workbench. After the workpiece is clamped at one time, through the movement of the rotating workbench and tool, multiple surfaces of the workpiece can be milled, bored, drilled, thread tapping, reaming and other processes, reducing the number of clamping times and improving processing accuracy and production efficiency.

Model:
HMC-500
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Features:

Castings: resin sand type (aluminum-wood combined wood type). Ball screw (Taiwan Shangyin or Yintai): X-axis 4012, Y-axis 4012, Z-axis 5012. Elastic coupling (Germany R+W).
Reloaded roller guide (Taiwan Silver): X, Y axis 45, Z axis 55. Special bearing for lead screws (Japanese NSK).
Spindle (Taiwan): Horizontal standard BT50-C190 ring spray spindle, homemade loose knife oil cylinder.
Rail protection: X and Z direction stainless steel metal edged steel shield; Y direction armor protective curtain.
Hydraulic and lubricating pipeline system in the optical machine.
Lubrication method for special bearings for rails, lead screws and lead screws: volumetric type.

Technical parameters:

project	unit	HMC-500
X-axis stroke (left and right)	mm	1100
Z-axis stroke (front and rear)	mm	700
Y-axis stroke (up and down)	mm	600
Distance from the nose end of the spindle to the work surface	mm	150~850
Workbench size	mm	500x500
Maximum load bearing of workbench	kg	800
T-shaped slot (dimension x quantity x spacing)	mm	18x5x100
Fast feed speed of X/Y/Z axis	m/min	32/28/32
Driver method		Belt type
Spindle taper		BT40
Maximum working speed	r/min	8000
Power (rated/maximum)	KW	15
Power (rated/maximum)	Nm
Torque (rated/maximum)	mm	0.008 (full length)
X/Y/Z axis positioning accuracy (semi-closed loop)	mm	0.005 (full length)
X/Y/Z axis repeat positioning accuracy (semi-closed loop)		Round plate
Tool magazine type		24
Tool magazine capacity	mm	078/150/300
Maximum tool size (full tool diameter/empty tool adjacent diameter/length)
Tool weight	kg	8
Air pressure	MPa	0.65
Battery capacity	KVA	25
Machine tool weight	Kg	7000
