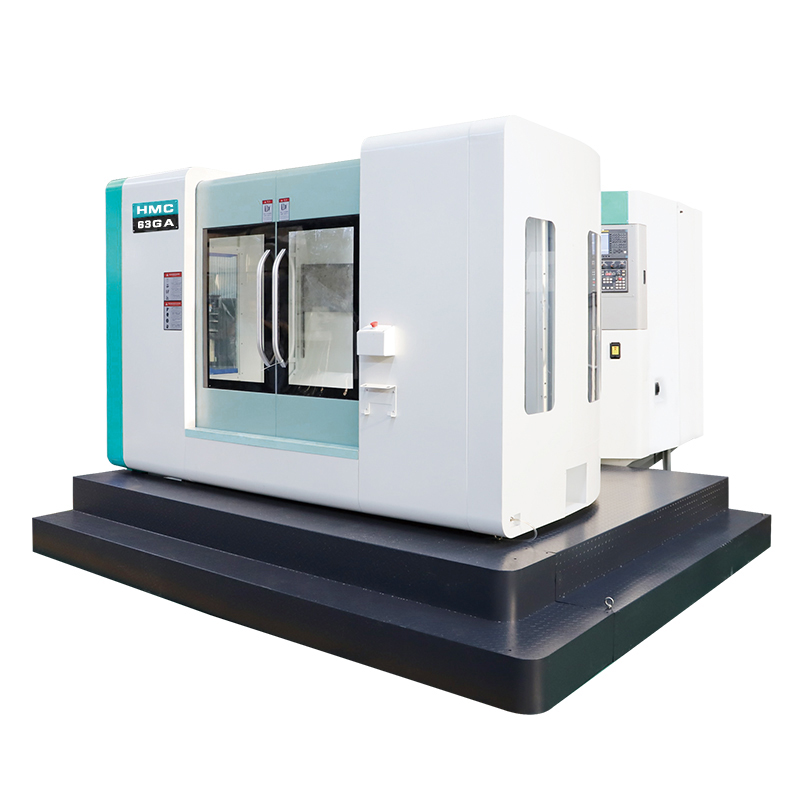

HMC-63GA Horizontal Machining Center

The spindle axis is parallel to the workbench. After the workpiece is clamped at one time, through the movement of the rotating workbench and tool, multiple surfaces of the workpiece can be milled, bored, drilled, thread tapping, reaming and other processes, reducing the number of clamping times and improving processing accuracy and production efficiency.

Model:
HMC-63GA
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Features:

Castings: resin sand type (aluminum-wood combined wood type). Ball screw (Taiwan Shangyin or Yintai): X-axis 4012, Y-axis 4012, Z-axis 5012. Elastic coupling (Germany R+W).
Reloaded roller guide (Taiwan Silver): X, Y axis 45, Z axis 55. Special bearing for lead screws (Japanese NSK).
Spindle (Taiwan): Horizontal standard BT50-C190 ring spray spindle, homemade loose knife oil cylinder.
Rail protection: X and Z direction stainless steel metal edged steel shield; Y direction armor protective curtain.
Hydraulic and lubricating pipeline system in the optical machine.
Lubrication method for special bearings for rails, lead screws and lead screws: volumetric type.

Technical parameters:

project	UNIT	HMC-63GA
X-axis stroke (left and right)	mm	1050
Z-axis stroke (front and back of column)	mm	750
Y-axis stroke (up and down)	mm	900
Distance from the center line of the spindle to the work surface	mm	-80~820
Distance from the end face of the spindle to the center of the workbench	mm	150~850
Workbench size	mm	630x630
Maximum load bearing of workbench	kg	800
T-shaped slot (dimension x quantity x spacing)	mm	22x5x125
Workbench indexing	o	1°x360
Maximum rotation speed of the rotary table	r/min	10
Fast feed speed of X/Y/Z axis	m/min	36/20/24
Driver method		Belt type
Spindle taper		BT50
Maximum working speed	r/min	6000
Power (rated/maximum)	KW	18
Torque (rated/maximum)	Nm	/
X/Y/Z axis positioning accuracy (semi-closed loop)	mm	0.008(full length)
X/Y/Z axis repeat positioning accuracy (semi-closed loop)	mm	0.005(full length)
Tool magazine type		Disc
Tool magazine capacity		30
Maximum tool size	mm	78/150/300
(Full knife diameter/empty knife adjacent tool diameter/length)
Tool weight	kg	25
Air pressure	MPa	0.65
Machine tool weight	kg	18000
