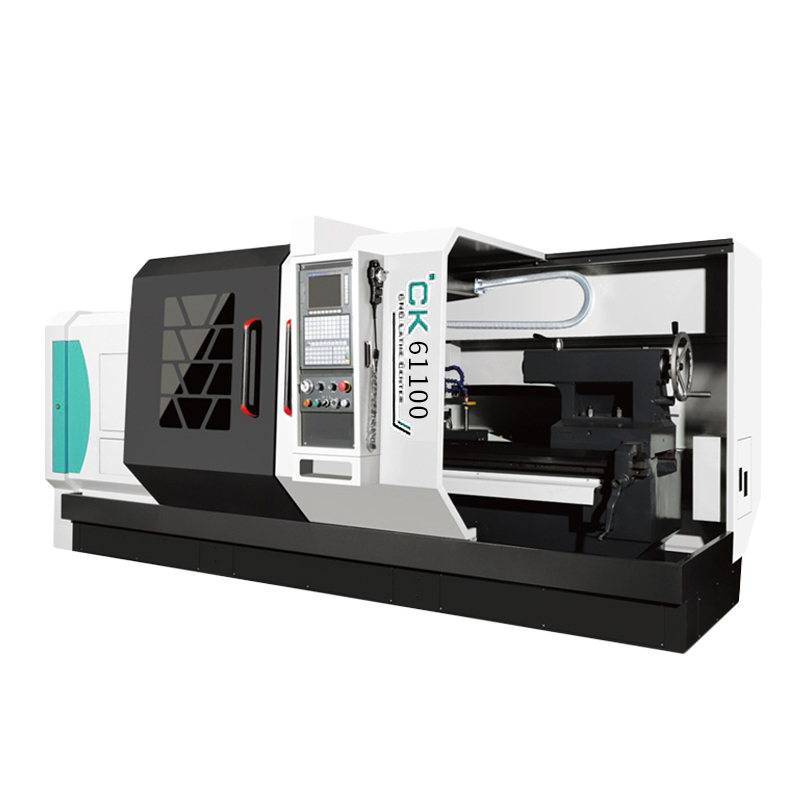

CK61100 CNC lathe

Supports a variety of cutting processes, such as inner and outer cylindrical surfaces, conical surfaces, threads, end surfaces, grooves, drilling, reaming, etc.

Model:
CK61100
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Performance Features:

Four-station electric tool holder
Frequency converter speed regulation
Standard configuration: manual chuck
Select configuration: spring chuck, hydraulic chuck, hydraulic chuck, automatic feeding device, knife discharge

Technical parameters:

project	unit	CK61100×1500	CK61100×2000	CK61100×3000
Maximum slewing diameter of bed	mm	1000mm	1000mm	1000mm
Maximum rotation diameter on the tool holder	mm	660mm	660mm	660mm
Spindle end surface		A11	A11	A11
Spindle through hole diameter	mm	105mm	105mm	105mm
Spindle speed	rpm	30-835	30-835	30-835
Spindle		Manual shift 4-speed	Manual shift 4-speed	Manual shift 4-speed
Minimum moving unit of drag board Z direction	mm/min	0.001mm/min	0.001mm/min	0.001mm/min
Drag plate X to the minimum moving unit	mm/min	0.001mm/min	0.001mm/min	0.001mm/min
Drag board X stroke	mm	660mm	660mm	660mm
Drag Z itinerary	mm	1500	2000	3000
Maximum machining length	mm	1350	1850	2850
Drag plate X/Z direction fast movement speed	mm/min	6000/12000mm/min	6000/12000mm/min	6000/12000mm/min
Tail seat sleeve diameter	mm	100mm	100mm	100mm
Tail seat sleeve cone hole		Mohs No. 5	Mohs No. 5	Mohs No. 5
Maximum stroke of tail seat sleeve	mm	250mm	250mm	250mm
Main motor power	Kw	15kw	15kw	15kw
Z-axis repeat positioning accuracy	mm	0.015mm	0.015mm	0.015mm
X-axis repeat positioning accuracy	mm	0.01mm	0.01mm	0.01mm
Repeat positioning accuracy of electric tool holder	mm	0.002mm	0.002mm	0.002mm
gross weight	T	5.5T	6.5T	7.5T
