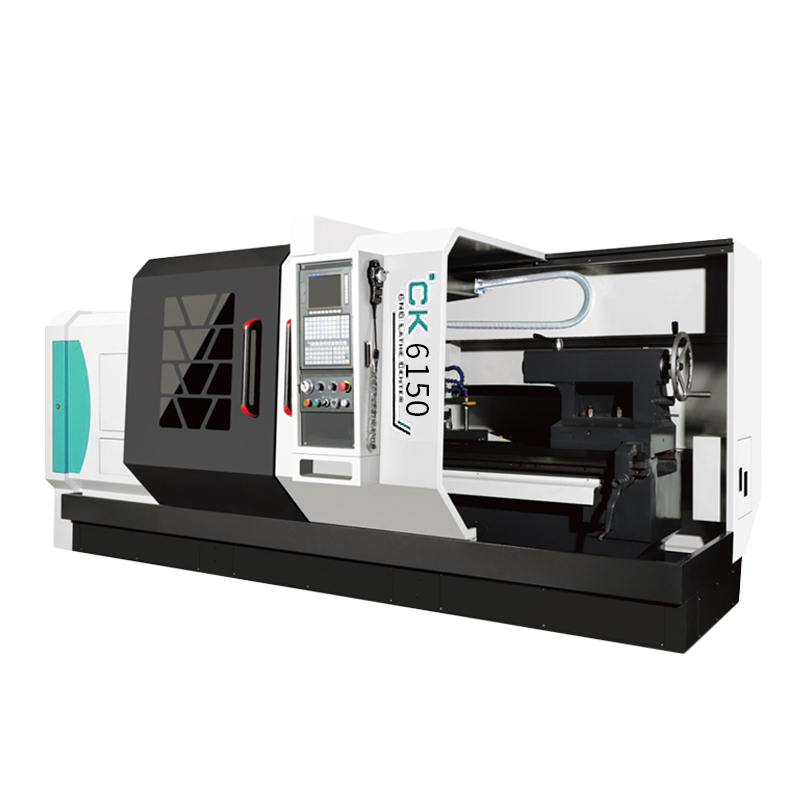

CK6150 CNC lathe

Supports a variety of cutting processes, such as inner and outer cylindrical surfaces, conical surfaces, threads, end surfaces, grooves, drilling, reaming, etc.

Model:
CK6150
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Performance Features:

Four-station electric tool holder
Frequency converter speed regulation
Standard configuration: manual chuck
Select configuration: spring chuck, hydraulic chuck, hydraulic chuck, automatic feeding device, knife discharge

Technical parameters:

project	unit	CK6150×1000	CK6150×1500
Maximum slewing diameter of bed	mm	Φ500	Φ500
Maximum slewing diameter on the slide	mm	Φ290	Φ290
Slewing length	mm	1000	1500
Maximum machining diameter	mm	Φ500	Φ500
Spindle through hole diameter	mm	Φ82	Φ82
Spindle end type		A2-8	A2-8
Chuck	mm	Ordinary 250	Ordinary 250
Spindle Series		Manual three-speed	Manual three-speed
Spindle extreme speed	rpm	45-1600	45-1600
Tail seat sleeve diameter	mm	Φ75	Φ75
Taper of inner hole of tail seat sleeve	No	MT5#	MT5#
Tail seat sleeve stroke	mm	150	150
Tail seat configuration		Ordinary hand crank	Ordinary hand crank
Number of electric tool holders	pcs	4	4
Size of knife	mm	25X25(four-station)	25X25(four-station)
Screw type X-direction	mm	FDC2506	FDC2506
Z direction	mm	FDC4008	FDC4008
X/Z Fast Moving Speed	m/min	6/8	6/8
X/Z Motor torque	Nm	5/7.7	5/7.7
Minimum setting unit	mm	0.001	0.001
Main motor power	Kw	7.5	7.5
Headboard length	mm	670	670
Tail seat length	mm	400	400
Saddle layout		Flat bed	Flat bed
Guide rail form		Hard rail (>HRC55)	Hard rail (> HRC55)
Machine tool weight	Kg	3000	3300
Dimensions (Length x Width x Height)	mm	2500X1500X1750	3500×1500×1750

project	unit	CK6150×2000
Maximum slewing diameter of bed	mm	Φ500
X-directional rail span	mm	210
Z-directional rail span	mm	400
Maximum rotation diameter on the slider	mm	Φ250
Center distance	mm	2000
Slewing length	mm	1850
Center height from the bed	mm	276
Height from the ground	mm	1110
Spindle through hole diameter	mm	Φ82
Bar diameter	mm	Φ80
With hollow chuck pull rod through hole	mm	Φ65
Spindle end type		A2-8
Chuck	mm	Ordinary 250
Spindle taper hole taper	No	Metric 90,1:20
Spindle extreme speed	rpm	1800
Tail seat sleeve diameter	mm	Φ75
Taper of inner hole of tail seat sleeve	No	MT5#
Tail seat sleeve stroke	mm	150
Tail seat configuration		Ordinary hand crank
Number of electric tool holders	Pcs	4
Size of knife	mm	25×25(four-station)
Screw Model X-direction	mm	FDC2506-P3
Z-direction	mm	FDC4008-P3
X/Z direction fast movement speed	m/min	6/8
X-directional itinerary	mm	280
Minimum setting unit	mm	0.001
Main motor power	Kw	7.5
Total power	Kw	13
Machine tool weight	Kg	3650
Dimensions (lengthwidthheight)	mma	3650×1650×1750
