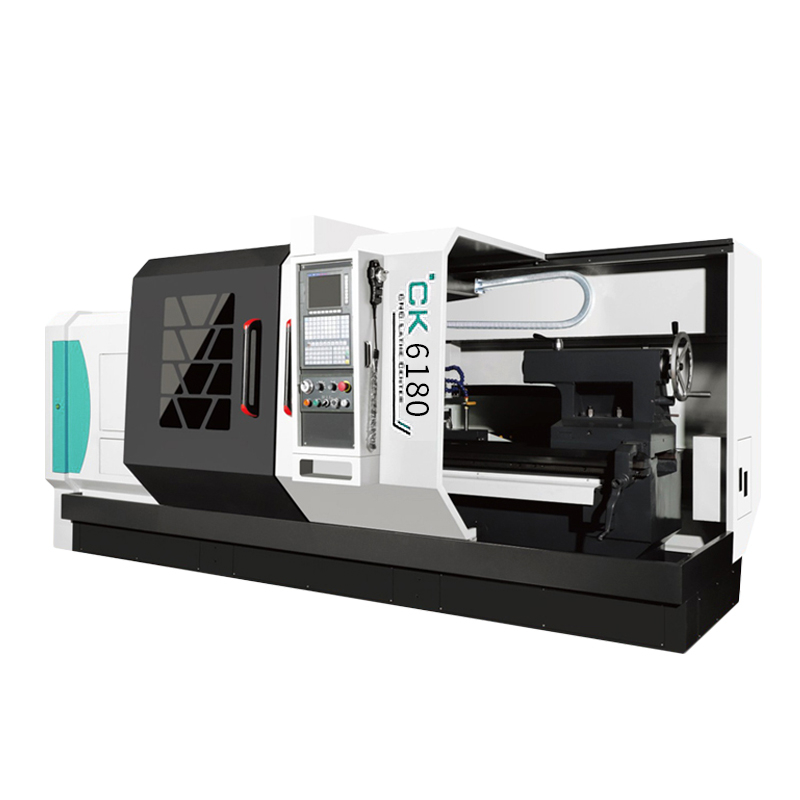

CK6180 CNC lathe

Supports a variety of cutting processes, such as inner and outer cylindrical surfaces, conical surfaces, threads, end surfaces, grooves, drilling, reaming, etc.

Model:
CK6180
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Performance Features:

Four-station electric tool holder
Frequency converter speed regulation
Standard configuration: manual chuck
Select configuration: spring chuck, hydraulic chuck, hydraulic chuck, automatic feeding device, knife discharge

Technical parameters:

project	unit	CK6180×1500	CK6180×3000
Maximum slewing diameter of bed	mm	Φ800	Φ800
Maximum slewing diameter of sliding table	mm	Φ480	Φ480
Cutting diameter	mm	Φ800	Φ800
Maximum machining length	mm	1350	2850
Chuck		400 Three-claw	400 Three-claw
Spindle head form		C11	C11
Spindle through hole diameter	mm	Φ105	Φ105
Spindle Series		Manual 3-speed	Manual 3-speed
Spindle extreme speed	rpm	30-850	30-850
Knife holder form		Electric vertical	Electric vertical
Number of workstations		4	4
Tool specifications	mm	32/40	32/40
Maximum slewing diameter of bed	mm	Φ100/250	Φ100/250
Maximum slewing diameter of sliding table		MT6	MT6
Cutting diameter		Manual	Manual
Maximum machining length		Manual	Manual
Chuck	Kw	15	15
Spindle head form	Nm	10/15	10/15
Spindle through hole diameter	W	125	125
Spindle Series	KVA	15	15
Spindle extreme speed		Flat bed	Flat bed
Knife holder form		Hard rail(> HRC55)	Hard rail (HRC55)
Number of workstations	Kg	5500	7000
Tool specifications	mm	400022002000
