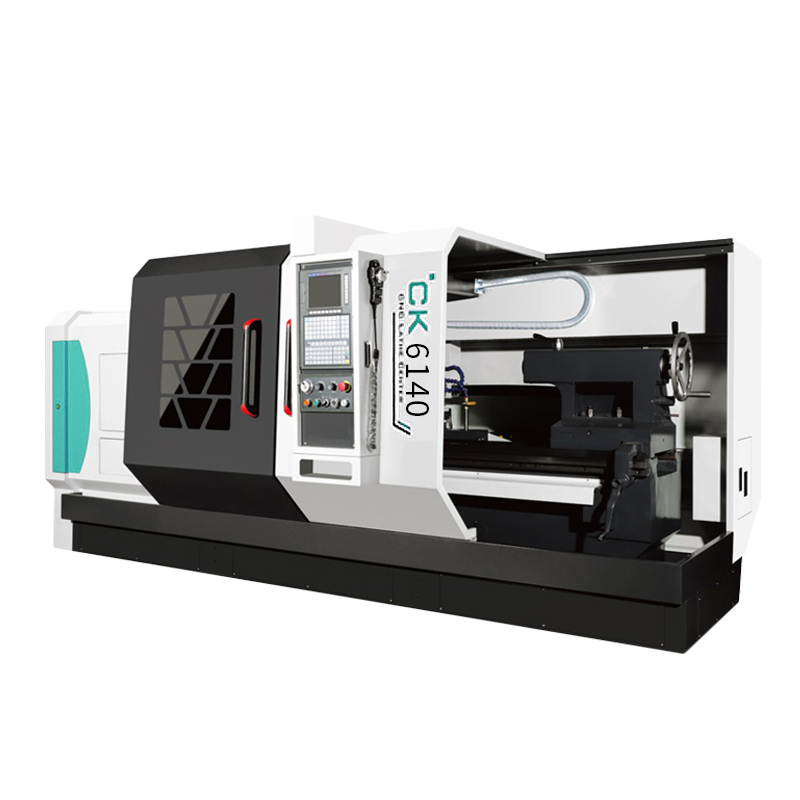

CK6140 CNC lathe

Supports a variety of cutting processes, such as inner and outer cylindrical surfaces, conical surfaces, threads, end surfaces, grooves, drilling, reaming, etc.

  • CK6140

  • INDEX

SKU:
Availability:
Inquire

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Product Description


Performance Features:

  • Four-station electric tool holder

  • Frequency converter speed regulation

  • Standard configuration: manual chuck

  • Select configuration: spring chuck, hydraulic chuck, hydraulic chuck, automatic feeding device, knife discharge


Technical parameters:

projectunitCK6140x750CK6140x1000
Maximum slewing diameter of bedmmΦ400Φ400
Maximum slewing diameter on the skateboardmmΦ210Φ210
Maximum workpiece length between two top tipsmm7501000
Spindle through hole diametermmΦ52Φ52
Spindle end type
A2-6A2-6
Spindle extreme speedrpm100-1600100-1600
Spindle front taper
Mohs 6Mohs No. 6
Tail seat configuration
Ordinary hand crankOrdinary hand crank
Number of electric tool holderspcs44
Tool holder sizemm20X20(four-station)20X20 (four-station)
Repeat positioning accuracy of tool holder
±3.2'±3.2'
Fast movement speed of X/Z axism/min6/106/10
Minimum setting unitmm0.0010.001
Main motor powerKw5.55.5
Feed motor form
Frequency conversionFrequency conversion
Machine tool weightKg21502250
Dimensions (Length × Width × Height)mm2310X1550X18002450×1550×1800





Product Description
