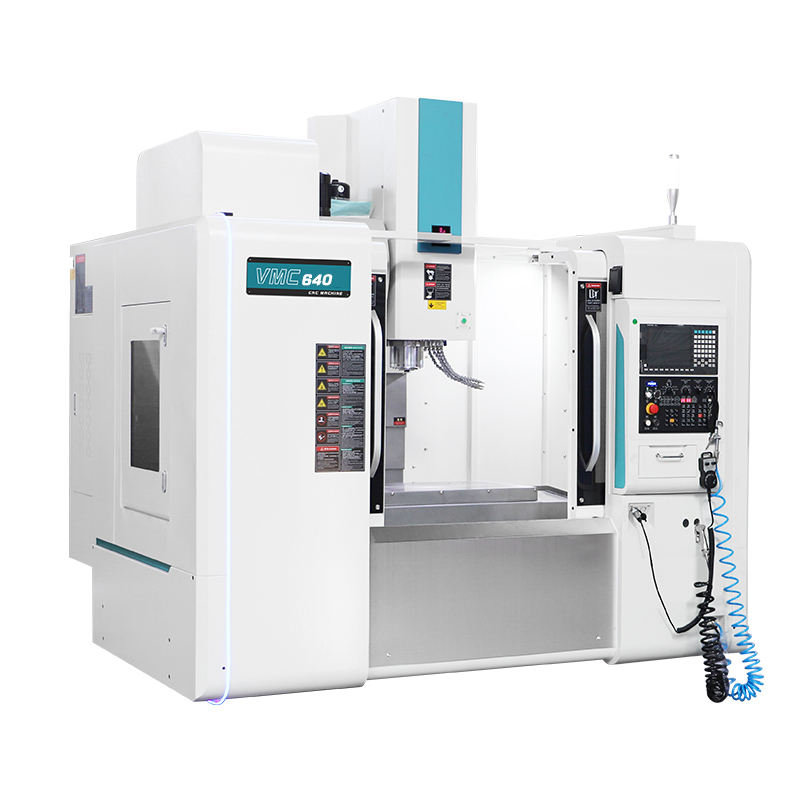

VMC640 Vertical Machining Center

The main large parts of the machine tool: the base, workbench, column, bed saddle, and spindle box are all made of high-quality resin sand molding and high-strength cast iron. They have a complete heat treatment process to eliminate residual stress and arrange sufficient reinforcement plates to ensure that the whole machine has sufficient strength, rigidity and high stability.

Model:
VMC640
Brand:
INDEX


SKU:
Availability:



Inquire PDF Export

Product Description

Performance Features:

The main large parts of the machine tool: the base, workbench, column, bed saddle, and spindle box are all made of high-quality resin sand molding and high-strength cast iron. They have a complete heat treatment process to eliminate residual stress and arrange sufficient reinforcement plates to ensure that the whole machine has sufficient strength, rigidity and high stability; they use Taiwan's original heavy-load linear guide rails, which have strong rigidity and good dynamic accuracy; the three-axis transmission uses Taiwan's grinding double-nut ball screws, which are compact in structure, smooth in motion and high accuracy; the highly rigid Taiwan's spindle is lubricated by grease, which can ensure that the spindle bearings are constant and reliable lubricated; the base adopts a large casting tray structure, which has good waterproof performance.

Technical parameters:

project		unit	VMC640
Processing range	×Axis stroke	mm	600
	Y-axis stroke	mm	360
	Z-axis stroke	mm	450
	Distance from the nose end of the spindle to the work surface	mm	100~550
Workbench	Workbench size	mm	800×300
	Maximum load capacity of workbench	kg	300
	T-shaped groove (size × quantity × spacing)	mm	18×3×100
Feed	Fast feed speed of X/Y/Z axis	m/min	36/36/32
Spindle	Driver method		Belt type
	Spindle taper		BT40
	Maximum working speed	r/min	8000
	Power (rated/maximum)	KW	5.5/7.5
	Torque (rated/maximum)	Nm
Accuracy	X/Y/Z axis positioning accuracy (semi-closed loop)	mm	0.008 (full length)
Accuracy	X/Y/Z axis repeatability accuracy (semi-closed loop)	mm	0.005 (full length)
Tool library	Type		disc
	Tool magazine capacity		16
	Maximum tool size (full tool diameter/empty adjacent tool diameter/length)	mm	Φ78/Φ150/300
	Maximum tool weight	kg	7
other	Gas source pressure	MPa	0.65
	Power supply capacity	KVA	25
	Machine tool size (length x width x height)	mm	2400×2200×2500
