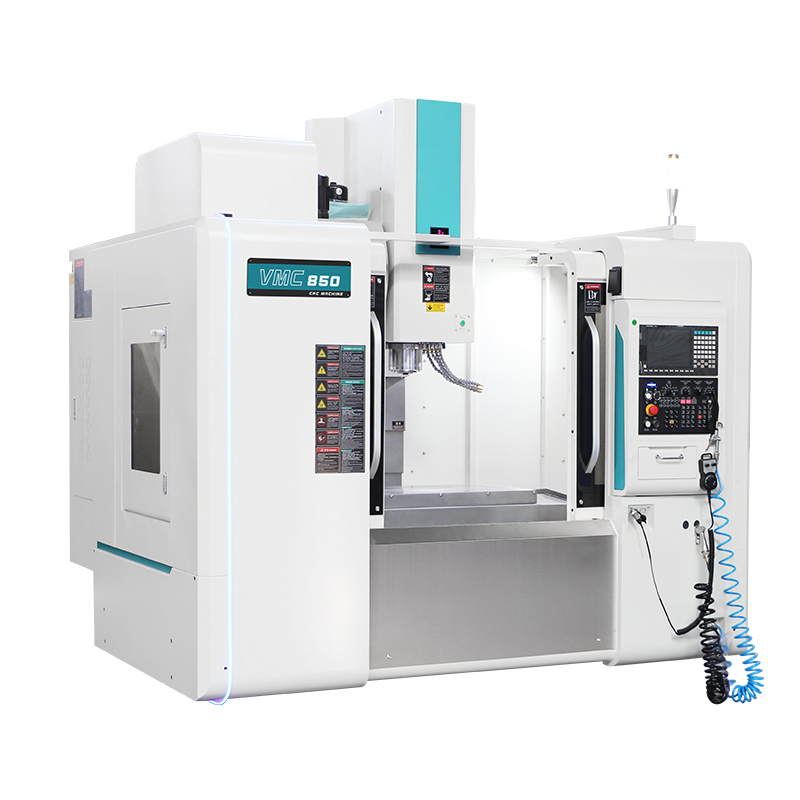

Performance Features:
The main large parts of the machine tool: the base, workbench, column, bed saddle, and spindle box are all made of high-quality resin sand molding and high-strength cast iron. They have a complete heat treatment process to eliminate residual stress and arrange sufficient reinforcement plates to ensure that the whole machine has sufficient strength, rigidity and high stability; they use Taiwan's original heavy-load linear guide rails, which have strong rigidity and good dynamic accuracy; the three-axis transmission uses Taiwan's grinding double-nut ball screws, which are compact in structure, smooth in motion and high accuracy; the highly rigid Taiwan's spindle is lubricated by grease, which can ensure that the spindle bearings are constant and reliable lubricated; the base adopts a large casting tray structure, which has good waterproof performance.
Technical parameters:
| project | unit | VMC850 |
| X-axis stroke | mm | 800 |
| Y-axis stroke | mm | 500 |
| Z-axis stroke | mm | 500 |
| Workbench size | mm | 1000×500 |
| Maximum load on the workbench | kg | 500 |
| T-shaped groove (number of grooves × width of groove distance) | mm | 5×18×100 |
| Spindle taper |
| BT40 |
| Spindle power | KW | 7.5/11 |
| Maximum spindle speed | rpm | 8000 |
| Fast movement speed (X/Y) | m/min | 48/48/48 |
| Cutting feed | mm/min | 1-8000 |
| Distance from the nose end of the spindle to the work surface | mm | 130-630 |
| Distance from the center of the spindle to the column guide rail surface | mm | 525 |
| Maximum tool diameter | mm | Φ78/Φ120 |
| Maximum workbench length | mm | 300 |
| Maximum workbench weight | kg | 8 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat accuracy | mm | ±0.005 |
| Machine tool weight (approximately) | kg | 5600 |
| External dimensions | mm | 2600×2300×2800 |
