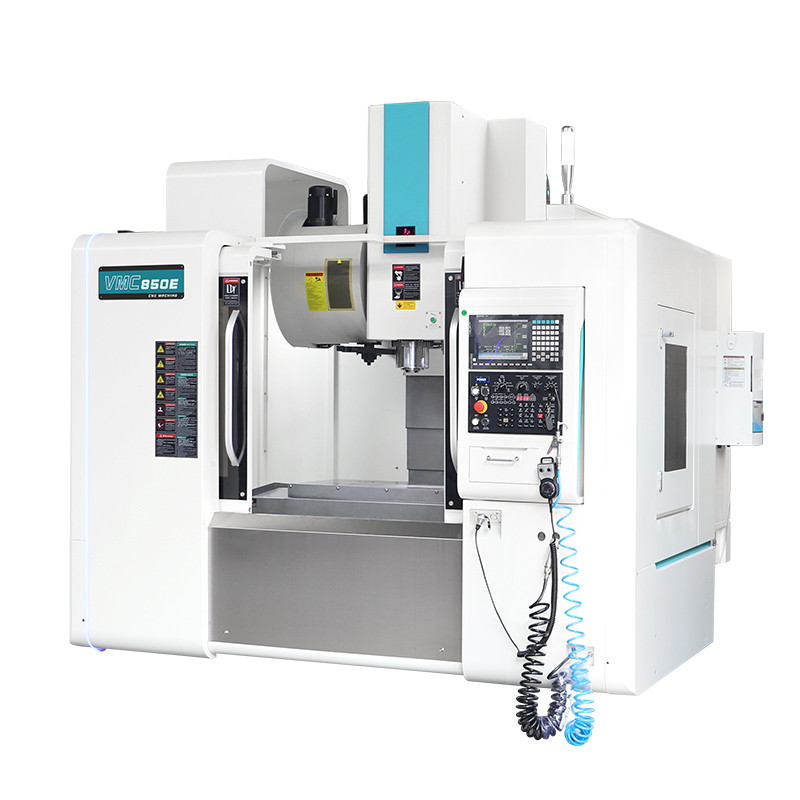

Performance Features:
The main large parts of the machine tool: the base, workbench, column, bed saddle, and spindle box are all made of high-quality resin sand molding and high-strength cast iron. They have a complete heat treatment process to eliminate residual stress and arrange sufficient reinforcement plates to ensure that the whole machine has sufficient strength, rigidity and high stability; they use Taiwan's original heavy-load linear guide rails, which have strong rigidity and good dynamic accuracy; the three-axis transmission uses Taiwan's grinding double-nut ball screws, which are compact in structure, smooth in motion and high accuracy; the highly rigid Taiwan's spindle is lubricated by grease, which can ensure that the spindle bearings are constant and reliable lubricated; the base adopts a large casting tray structure, which has good waterproof performance.
Technical parameters:
| project | unit | VMC850E |
| X-axis stroke | mm | 800 |
| Y-axis stroke | mm | 500 |
| Z-axis stroke | mm | 500 |
| Distance from the nose end of the spindle to the work surface | mm | 100~600 |
| Workbench size | mm | 900×400 |
| Maximum load bearing of workbench | kg | 500 |
| T-shaped slot (dimension x quantity x spacing) | mm | 18×3×100 |
| Fast feed speed of X/Y/Z axis | m/min | 36/36/36 |
| Driver method |
| Belt type |
| Spindle taper |
| BT40 |
| Maximum working speed | r/min | 8000 |
| Power (rated/maximum) | KW | 5.5/7.5 |
| X/Y/Z three-axis motor power | Nm | 40469 |
| X/Y/Z axis positioning accuracy (semi-closed loop) | mm | 0.008(full length) |
| X/Y/Z axis repeat positioning accuracy (semi-closed loop) | mm | 0.005(full length) |
| type |
| Disc |
| Tool magazine capacity |
| 16T |
| Maximum tool size | mm | Φ78/Φ150/300 |
| Tool weight | kg | 8 |
| Air pressure | MPa | 0.65 |
| Battery capacity | KVA | 25 |
| Machine tool size (L x Width x Height) | mm | 2500×2350×2500 |
| Machine tool weight | kg | 4500 |
